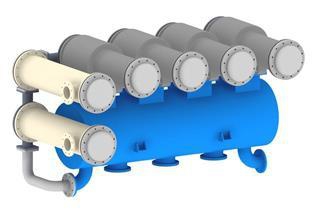

BS POWER EQUIPMENT, s.r.o. design and manufacture Multi-stage flash (MSF) distillation units with brine recirculation which are employed for producing fresh water from sea water. These units are used for ships and off-shore installations for producing process and potable water. Units are heated by engine jacket water or steam.

• Capacities 20 - 1500 m³/24 hours
• MSF distillers for marine and off -shore application can utilize engine jacket water or steam
• Salinity of fresh water < 10 ppm NaCl, on request under 1 ppm.
• Heat consumption from 50 kWh/1m³ fresh water (in dependence on the number of modules)

• Easily expandable modular design
• Brine recirculation
• Simple and fully automatic operation (easy maintenance)
• Compact and sturdy construction
• Low consumption of cooling water
• Operates at a top brine temperature < 100 °C to minimize scaling and to prevent corrosion
• Qualified after-sales service and support

• Distillate pump with electric motor
• Recirculation pump with electric motor
• Brine pump with electric motor
• Sea water pump with electric motor
• Vacuum pump with electric motor
• Demister
• Control panel with motor starter, built in salinometer and common alarm
• Documentation including operating instruction

• Disinfection unit
• Set of thermometers, pressure gauges
• Vacuum meter and fresh water meter
• Fresh water sample cock
• Remote indication fresh water quantity and salinity
• Dosing pumps station - remineralisation of water
